Z5 Leak Tester — Reliable Air Leak Testing Solutions

The Z5 Leak Tester offers up to 4 testing channels in a compact footprint, making it ideal for factory automation environments where space and precision matter.

Its 5” touchscreen interface simplifies setup and operation, while the modular design allows you to store multiple programs for a variety of leak tests.

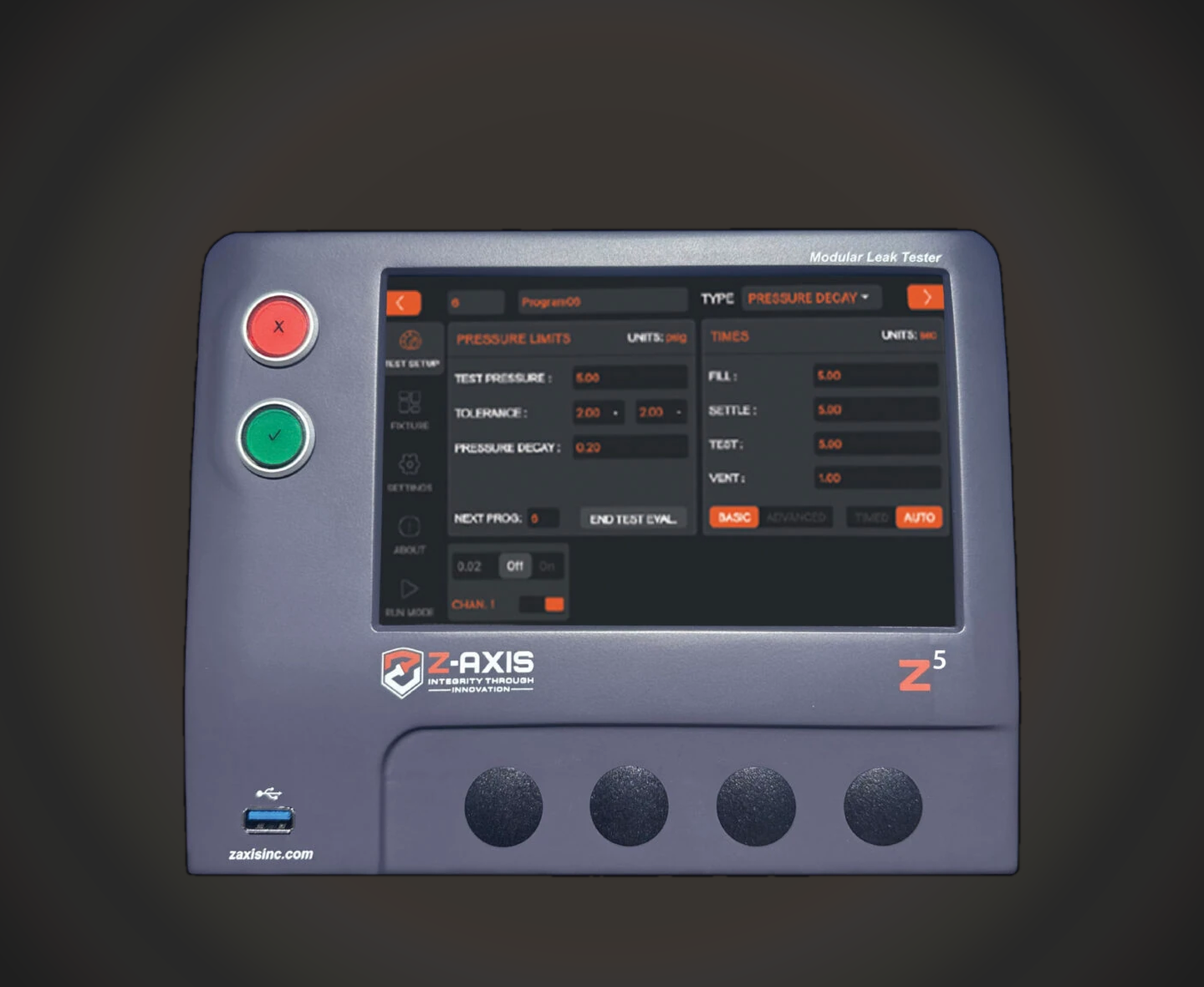

Front view of the Z5 Leak Tester, compact 4-channel air leak testing equipment with 5-inch touchscreen interface by Zaxis
Click Image to View Larger

Why Choose the Z5 Leak Tester for Your Production Line?

Designed for both efficiency and precision, the Z5 Leak Tester streamlines your air leak testing process. Whether you’re running multiple programs or performing complex tests, this tester delivers reliable results while saving space and operator time.

  • Up to 4 Testing Channels: Run multiple tests simultaneously to improve throughput
  • Compact Footprint: Perfect for tight factory spaces without sacrificing performance
  • 5” Touchscreen Interface: Easy setup, programming, and real-time monitoring
  • Modular Design: Store and switch between multiple programs with ease
  • Reliable Precision: High-accuracy air leak measurements for consistent quality control

Request a Demoor Contact Usto Learn More

The back of the Zaxis Z8 Air Leak Tester.
Back

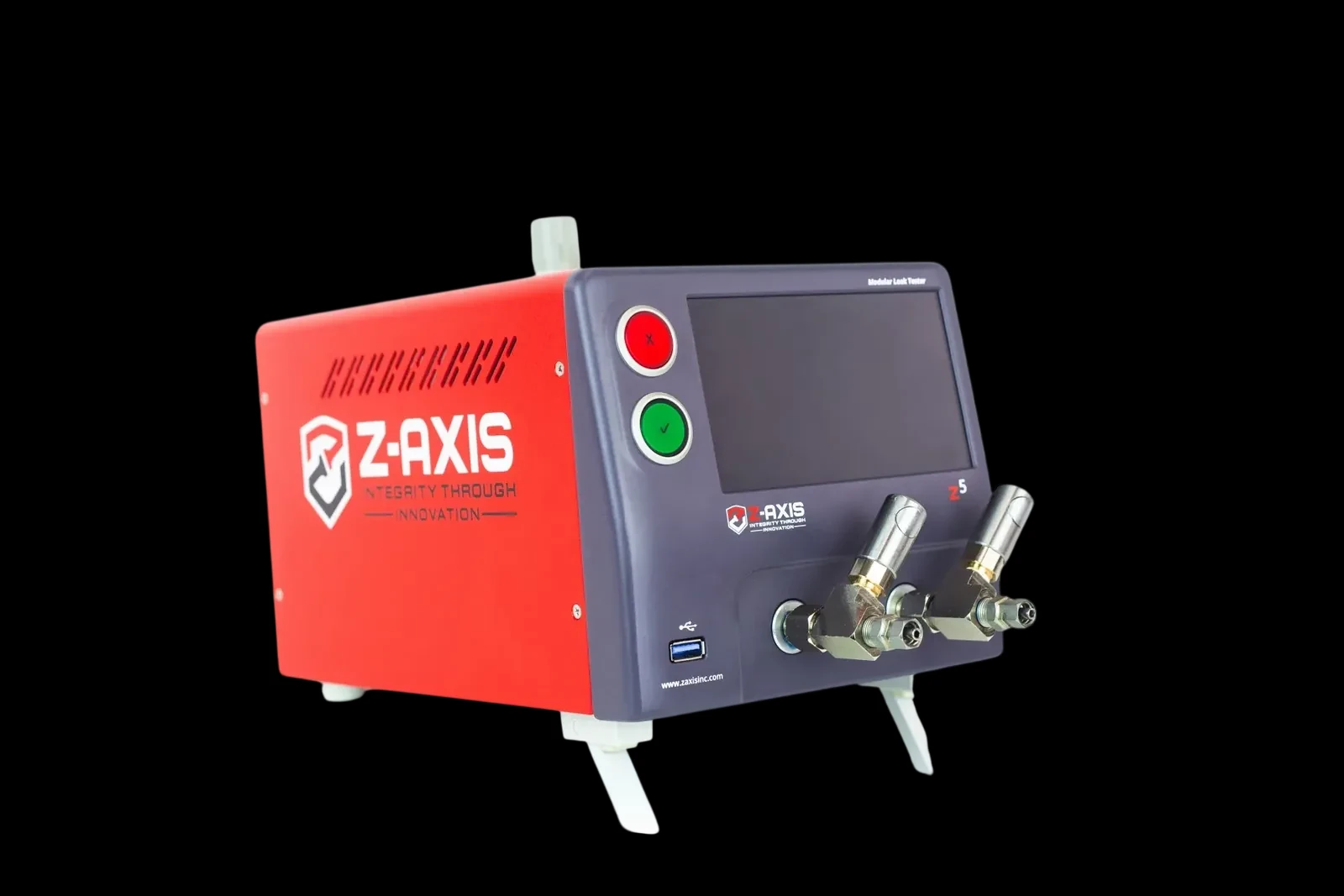

Zaxis Z5 air leak tester showing touchscreen interface and modular configuration for precise automated testing
Front

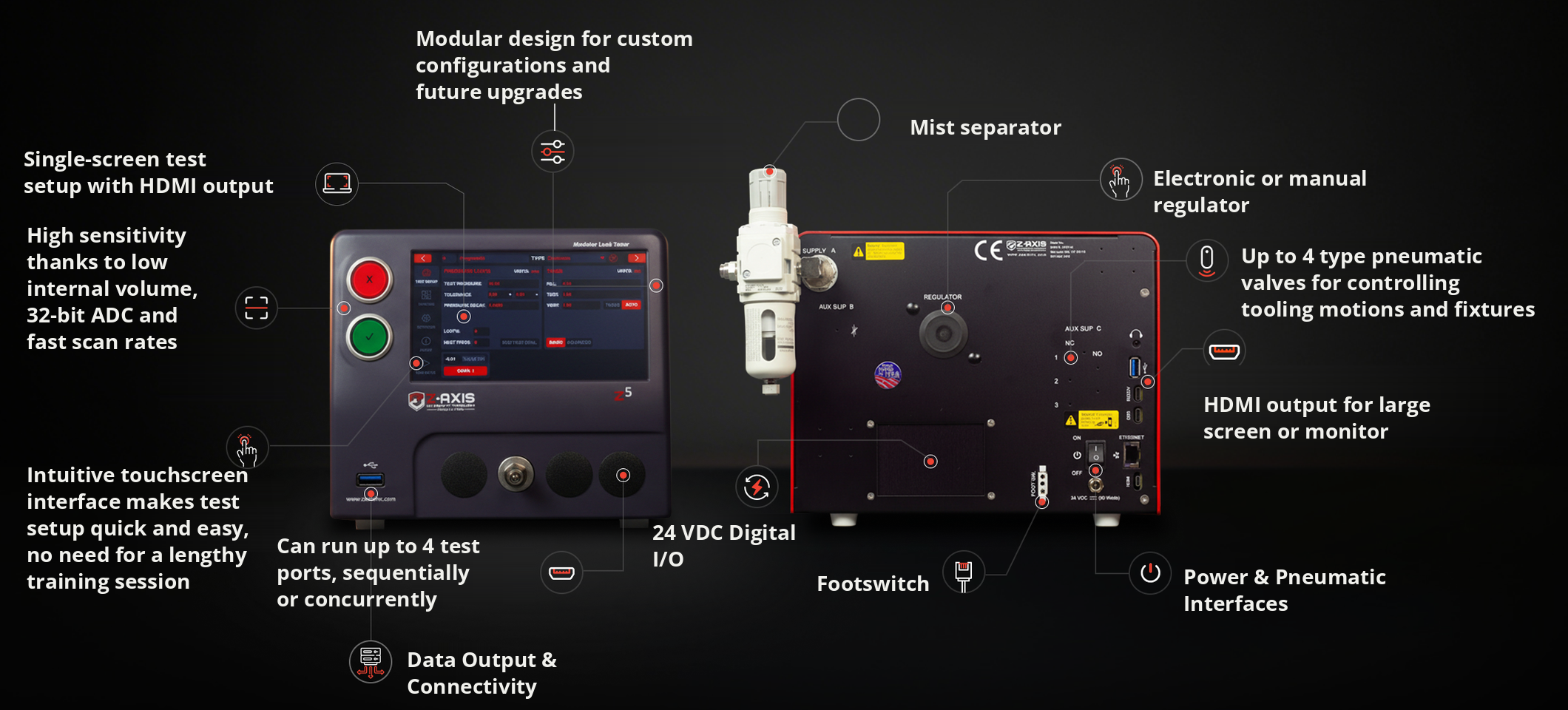

Benefits of the Z5 Leak Tester

  • Single screen test set up with HDMI output
  • Modular design for custom configurations and future upgrades
  • Can run up to 4 test ports, sequentially or concurrently
  • High sensitivity thanks to low internal volume, 32-bit ADC, and fast scan rates
  • Intuitive touchscreen interface makes test setup quick and easy, no need for a lengthy training session
  • Up to 4 optional pneumatic valves for controlling tooling motions and fixtures
  • Multiple communication options (Ethernet IP, TCP/IP, USB)
  • Electronic or manual high-pressure regulators from 2 to 1,000 psi
  • Up to 100 unique stored programs and optional onboard storage test results

Choose Zaxis as Your Air Leak Test Manufacturing Partner

For over 25 years, Zaxis has been the leading manufacturer of USA-made air leak testing equipment, including the Zaxis Z5 leak tester. We build air leak test solutions that are CE, ISO 9001, REACH, and RoHS compliant to fully support your automation production. Contact us to learn more. Request a quote to begin your order.

Available Zaxis Z5 Leak Test Types

Pressure Decay / Vacuum Decay
Occlusion
Mass Flow
Burst
Pressure Cracking
Chamber
Back Pressure Flow
Dimensions
6.5” wide, 7” high, 9” deep
Resolution
0.00001 PSI test result resolution
Test Port Fitting
1/4″ or 1/8″ FNPT female bulkhead
Pressure Range
2, 10, 15, 30, 60, 100, 150, 300, 400, 500, 725, 1000 PSIG of Positive Pressure,
0-14.7 PSI of Vacuum (other ranges available upon request)
Display
5” touch screen, pinch zoom, light & dark mode
Performance
32-bit ADC
Regulator
Built in Manual or Electronic
Leak Standard
Optional calibrated leak tool to prove your test setup
Stored Programs
100 – allows you to run multiple parameters through a single port
Memory
Optional onboard storage of test results with statistics
Connectivity/Power
USB, Ethernet/IP, TCP/IP, 24VDC I/O

Guide to Zaxis Z8/Z5 Air Leak Tester: Features & Setup
