Patented design
Thermally isolated and aseptic construction.
Leak Tester Accessories
Leak Tester Valves

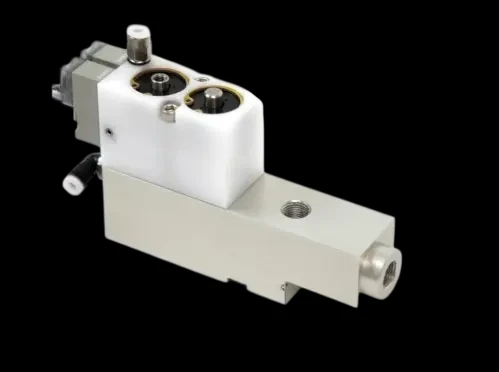

Zaxis valves and manifolds support sensitive, thermally stable air leak testing.
Zaxis carries valve options for multiple applications, including proprietary Type 2 and Type 3 valves designed for sensitivity, speed and thermal stability.
Pilot air actuates Type 2 and Type 3 valves, reducing heat transfer associated with standard solenoid and poppet valves. Lower heat transfer helps protect test pressure in small sensitive parts.
Request for QuoteValve design for sensitive tests
Zaxis carries a wide variety of valves for multiple applications, including proprietary Type 2 and Type 3 valves for sensitivity, speed and thermal stability.
Zaxis valves and valve manifolds are aseptic and made with high-quality materials for testing medical products. Internal test volume in the test manifold is less than 1 cubic centimeter.
Pilot air actuates Type 2 and Type 3 valves, eliminating much of the heat transfer created by standard solenoid/poppet valves. Heat transferred into a small sensitive part can adversely affect test pressure, causing lower test sensitivity and longer test times.
Valve options by pressure, flow and tester
Valve selection depends on the required maximum PSI, flow in liters per minute at 10 psi, and compatible tester. Type 1, Type 2, Type 3, Type 4 and high-flow configurations address different test setups.
Pressure versus time
The pressure-versus-time graph illustrates fill-time differences between Type 1H, Type 1L, Type 1X and Type 2A valves while each fills 92 cc and 229 cc of volume at 10 psi.
Valve and manifold features
Actuation
Air actuated Type 2 & 3 valves.
Power and volume
Low wattage, less than 1 watt; low internal volume, less than 1cc.
Materials
High quality materials for sensitive medical-product testing.
Specifications and options
| Valve type | Maximum PSI | Flow at 10 PSI | Compatible testers |
|---|---|---|---|
| Type 1H | 25 psi | 7.4 SLPM | All |
| Type 1L | 50 psi | 4.6 SLPM | All |
| Type 1X | 107 psi | 2.8 SLPM | All |
| Type 2 | 300 psi | 25 SLPM | Z1, Z5, Z8, iKit, Isaac HD, Zaxis 7i |
| Type 2B | 130 psi | 55 SLPM | Z1, Z5, Z8, iKit, Isaac HD, Zaxis 7i |
| Type 3 | 750 psi | 4 SLPM | Z1, Z5, Z8, iKit, Isaac HD, Zaxis 7i |
| Type 4 | 1000 psi | 13.4 SLPM | Isaac HD, Zaxis 7i |
| High Flow A | 30 psi | Isaac HD, Zaxis 7i | |
| High Flow F | 60 psi | Isaac HD, Zaxis 7i | |
| CAD files | Download Type 2 Manifold Assembly STEP file; Download Type 3 Manifold Assembly STEP file. |
Related accessories
Leak Tester Valves FAQ
Which Zaxis valve types use pilot-air actuation?
Type 2 and Type 3 valves are air actuated by pilot air, reducing heat transfer associated with standard solenoid/poppet valves.
What valve flow is available for a Type 1X?
The Type 1X is rated at 107 psi and 2.8 SLPM at 10 psi, and is compatible with all testers.
Which valve options work with the Isaac HD and Zaxis 7i?
Type 2, Type 2B, Type 3, Type 4, High Flow A and High Flow F list Isaac HD and Zaxis 7i compatibility.
Why does manifold volume matter in a sensitive test?
The Zaxis test manifold holds less than 1 cubic centimeter of internal test volume, helping limit the effects that can affect test pressure in a small sensitive part.
