eVmP Dispensers
Two compatible eVmP pumping functions in one enclosure.
Dual Metering

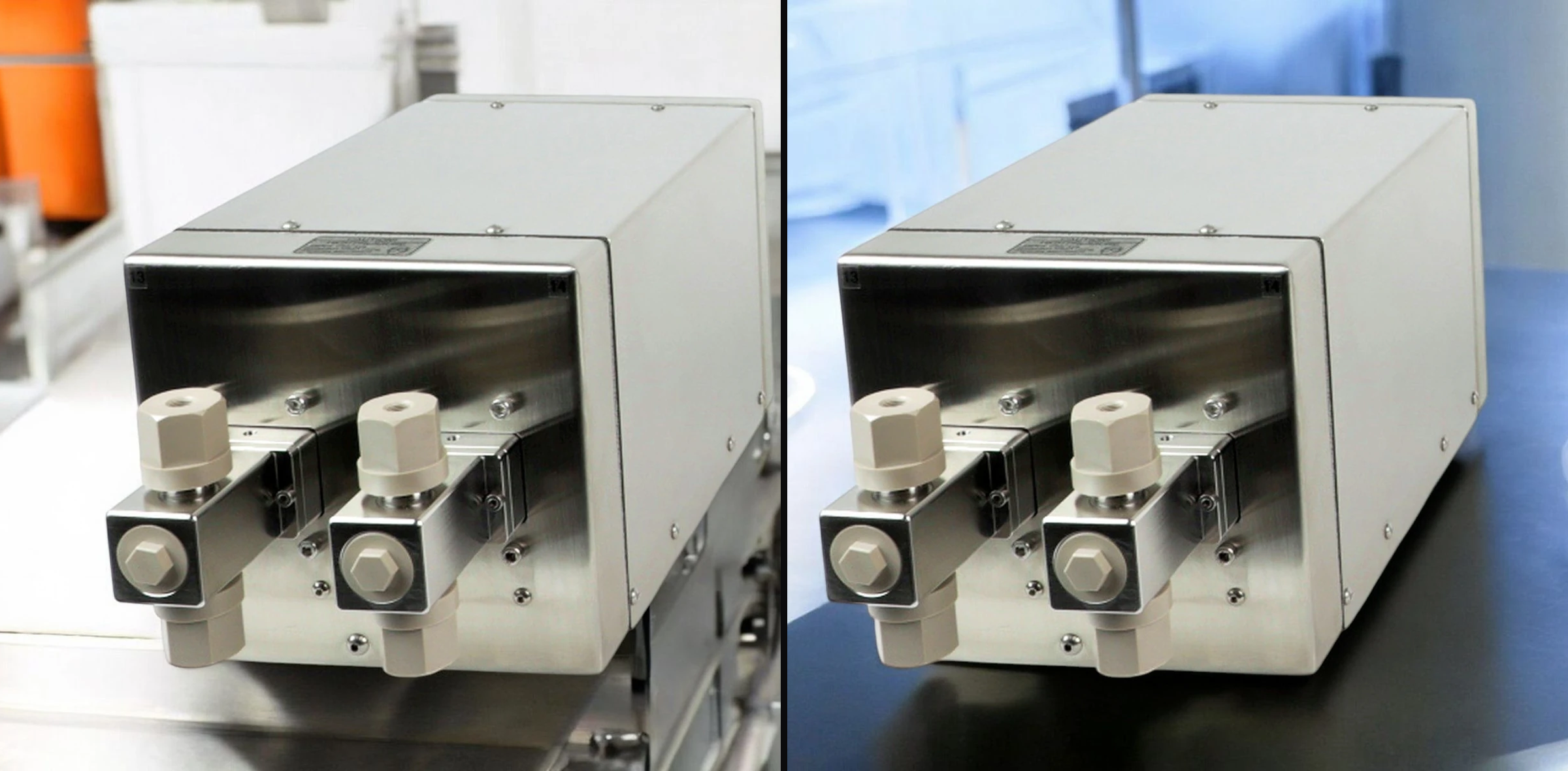

eVmP2 Dual Valveless Metering Pump System
Two Configurable eVmP Dispensers in One Enclosure

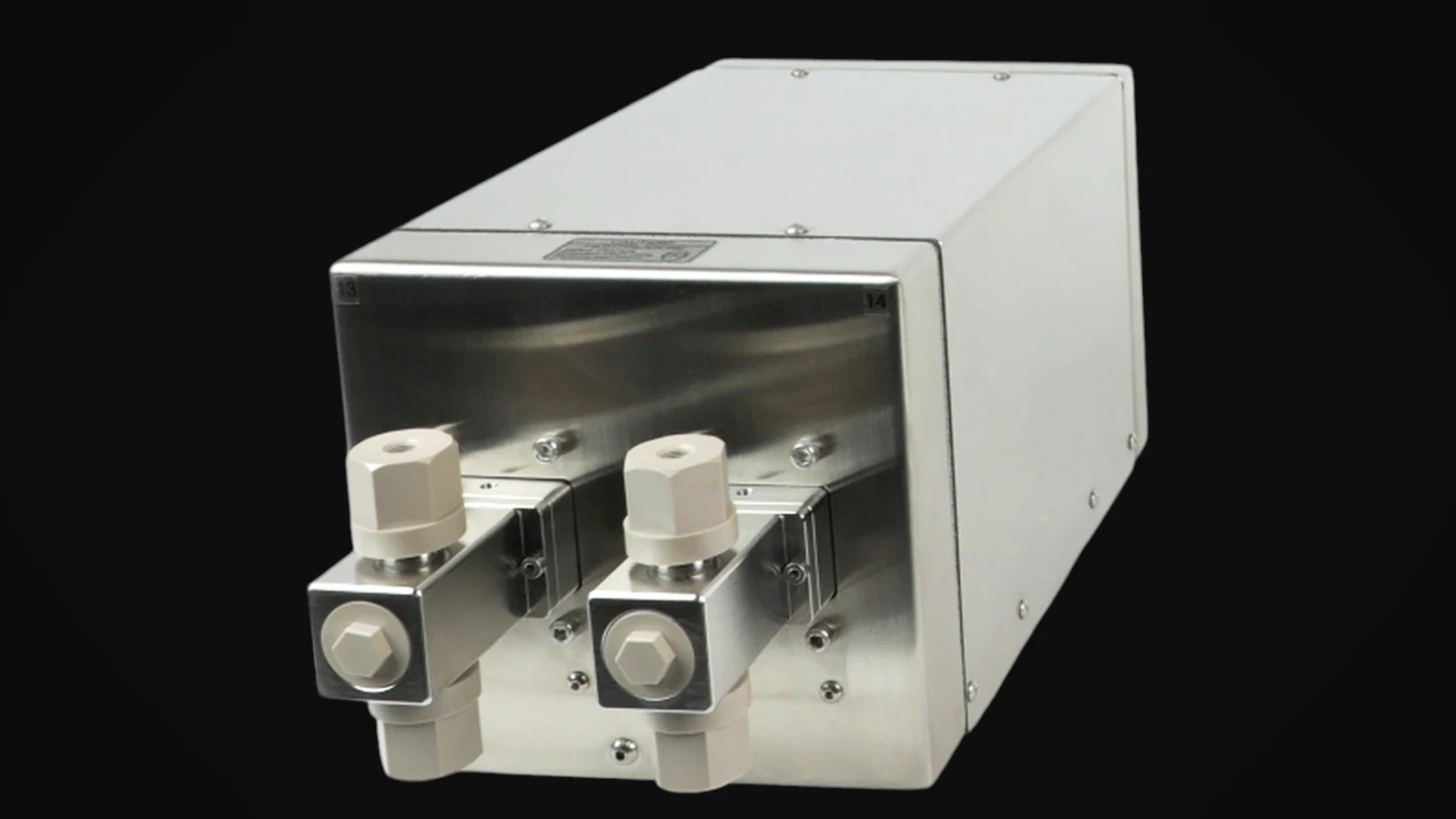

The eVmP2 is a dual enclosure that configures two eVmP dispensers in one system. It is a programmable, automated electronic variable metering pump arrangement for fluid dispensing and metering, designed around two compatible pump modules rather than a single standalone pump head.
Compatible M-series configurations reach up to 0.10 mL per revolution and 100 mL/min, V-series configurations up to 1.28 mL per revolution and 1,280 mL/min, and VS-series configurations up to 1.28 mL per revolution and 1,920 mL/min. Installed pump equipment determines the applicable range.
The eVmP Smart Pump system uses a valveless ceramic-piston design and touchscreen interface to set fluid-control parameters. Two precision stepper motors adjust pump volume and speed, while stroke rate and displacement are independently controlled for the selected configuration.
The eVmP2 supports Ethernet TCP/IP and RS485 communication, with operational modes for continuous metering, single or multiple dispense, flow direction and suck back. Zaxis provides configurable eVmP solutions through its in-house engineering and development team for automation applications.
Request for QuoteDispense Rate Calculator
Why Choose the eVmP2 Dual Enclosure?
The eVmP2 brings two eVmP dispensers into one configurable enclosure for fluid dispensing and metering. It is intended for applications that need two controlled pumping functions in one system, with a touchscreen interface for setting fluid-control parameters.
The eVmP2 supports custom smart-pump solutions through Zaxis engineering and development. Media compatibility, wetted-path options and selected M-, V- or VS-series equipment should be matched to the process before configuration. The dual system uses two precision stepper motors for pump-volume and speed adjustment, plus patented automatically adjusted dispense volume. Its interface and stored-program functions support repeatable setup of the configured two-pump arrangement, while in-house engineering can develop a custom eVmP smart-pump solution for the specific application.
eVmP Dispensers
Stored Programs
Multiple parameters can run through a single pump.
Full-Scale Accuracy
eVmP2 accuracy with 0.5% CV.
VS-Series Flow
Compatible VS-series system maximum.
Operating Temperature
Non-condensing operational temperature range.
eVmP2 Dual-Enclosure Benefits
The eVmP2 is built for configurable dual dispensing rather than a single-pump enclosure. The system pairs two precision stepper motors with electronic volume adjustment, stored programs and communication options so a configured pair of eVmP pump modules can address fluid-control work in one enclosure.
- ✓Two compatible eVmP dispensers in one enclosure.
- ✓Millions of maintenance-free cycles stated for the ceramic internals.
- ✓1% accuracy or better with no drift as stated for the system.
- ✓Two precision stepper motors for pump-volume and speed adjustment.
- ✓Patented, automatically adjusted dispense volume.
- ✓Independently controlled stroke rate and displacement.
- ✓PC interface with control up to 128 pump modules, up to 50 programs and RS232/485 PLC communication.
How the eVmP Enclosure Dispenses
The enclosure provides the control interface for a compatible eVmP pump head. The valveless cycle uses a piston to move fluid; the compatible head and selected operating program determine the dispensing task.
Aspirate
The piston draws fluid in as the cycle begins.
Rotate and Seal
The piston’s rotation seals the inlet as described for the eVmP valveless pumping principle.
Dispense
The piston dispenses the selected fluid volume through the compatible pump head.
Repeat
The programmed system repeats the cycle for continuous metering or single and multiple dispense operations.
For an overview of the eVmP interface and operation, see the eVmP Smart Pump Interface Overview video in the resources below.
Applications for eVmP Metering
The eVmP platform is used where a configured pump system is needed for controlled fluid dispensing. The enclosure should be paired with compatible M, V or VS10-series equipment and application-appropriate wetted-path materials.
Diagnostic reagent dispensing
Controlled dispensing for diagnostic reagent applications.
Read more →Buffer dispensing
Automated dispensing considerations for buffers and diagnostic workflows.
Read more →Pharmaceutical filling
Fluid metering options for pharmaceutical manufacturing.
Read more →Chemical metering
Configured pump systems for chemical metering applications.
Read more →Analytical instruments and OEM equipment
eVmP configurations for manufacturing and OEM instrumentation.
Read more →Electronics fluid metering
Fluid dispensing applications for electronics manufacturing.
Read more →Technical Specifications
These are eVmP2 system and compatible-series specifications. The chosen M-, V- or VS-series pump equipment and wetted-path material determine the final process configuration.
- Media Compatibility
- Most acids and bases, water-like to slurry, monomers and some polymers
- Wetted Path Options
- Ceramic (medical-grade alumina oxide), 316SS, 303/304SS, PVDF, PEEK; customization available
- Operational Temperatures
- -20ºC–70ºC, non-condensing
- Operational Types
- Continuous metering, single/multiple dispense, flow direction and suck back
- Stored Programs
- Up to 50
- Interface
- Ethernet TCP/IP, RS485 1/2 or full duplex
- Accuracy
- +/- 1% full scale, 0.5% CV
- M-Series Compatibility
- 100 PSIG; up to 0.10 mL/rev; up to 100 mL/min; 1000 RPM
- V-Series Compatibility
- 100 PSIG; up to 1.28 mL/rev; up to 1280 mL/min; 1000 RPM
- VS-Series Compatibility
- 200 PSIG; up to 1.28 mL/rev; up to 1920 mL/min; 1500 RPM
Compare the
eVmP Range
Choose the eVmP2 for two configurable eVmP dispensers in one enclosure. Choose a compatible M, V or VS-series pump arrangement based on the needed displacement, flow, pressure and wetted path; select the eVmP1 when a one-pump benchtop enclosure is appropriate.
| Specification |  M-Series |  V-Series |  VS10-Series |  eVmP1 Benchtop |  eVmP2 Dual |
|---|---|---|---|---|---|
| Format | Pump head + OEM drive | Pump head + OEM drive | Pump head + servo drive | Benchtop enclosure, 7″ touchscreen | Dual enclosure, two pumps |
| Volume per revolution / stroke | 2.5–100 µL | 25 µL–1.28 mL | Nearly 10 mL per stroke | Up to 1.28 mL (installed head) | Up to 1.28 mL (installed heads) |
| Maximum flow | Under 100 mL/min | Up to 1,920 mL/min (VS drive) | Up to 6 L/min (10 mL/rev @ 600 RPM) | Up to 900 mL/min | Up to 1,920 mL/min (VS-Series) |
| Maximum pressure | 100 PSIG | 100 PSIG (V) / 200 PSIG (VS) | 100 PSIG | 0–100 psi | 100 PSIG (M/V) / 200 PSIG (VS) |
| Accuracy / repeatability | ±1% FS / 0.5% CV | ±1% FS / 0.5% CV | ±1% FS / 0.5% CV | ±1% FS / 0.5% CV | ±1% FS / 0.5% CV |
| Wetted path | Ceramic, PVDF (Kynar®), PTFE, Rulon® AR | Ceramic, 316SS | Ceramic, 316SS, PTFE; sanitary fittings | Ceramic, 316SS, 303/304SS, PVDF, PEEK | Ceramic, 316SS, 303/304SS, PVDF, PEEK |
| Drive | Stepper (VMP-OEM-M) | Stepper (VMP-OEM-V) or servo (VMP-OEM-VS) | Servo (VMP-OEM-VS10) | M/V stepper or servo drive | Two stepper drives |
| Interface | RS485, PLC I/O, optional EtherNet/IP | RS485, PLC I/O, optional EtherNet/IP | RS485, PLC I/O, optional EtherNet/IP | RS485, 24 VDC I/O, optional EtherNet/IP | Ethernet TCP/IP, RS485 |
| Stored programs | Up to 50 | Up to 50 | Up to 50 | Up to 50 per drive | Up to 50 |
Industries We Serve
Zaxis eVmP systems support production work that calls for controlled fluid dispensing and metering. Review the application context with Zaxis to select the enclosure, compatible pump head and connection method for the process.
ElectronicsAccurate fluid metering for electronic manufacturing processes.
EnvironmentalRepeatable dosing for environmental monitoring and treatment.
MedicalPrecision dispensing for medical manufacturing applications.OEMConfigurable metering pumps for OEM equipment.Pharmaceutical ManufacturingReliable fluid control for pharmaceutical production.Positive Displacement PumpsPrecision metering solutions for fluid-control applications.eVmP2 Dual Enclosure FAQ
What is the eVmP2?
The eVmP2 holds two eVmP dispensers in one programmable enclosure for fluid dispensing and metering.
How many pumps does it support?
The eVmP2 contains two compatible eVmP pump modules. The selected modules establish the final process arrangement.
Which pump series are compatible?
The eVmP2 supports M-, V- and VS-Series equipment. M- and V-Series reach 100 PSIG, while VS-Series reaches 200 PSIG.
What communication interfaces are available?
The eVmP2 provides Ethernet TCP/IP and RS485 one-half or full duplex. It also supports RS232/485 PLC communication and PC interface control for up to 128 pump modules.
How many programs can it store?
The eVmP2 stores up to 50 programs and can run multiple parameters through a single pump.
What fluids can it handle?
Media compatibility includes most acids and bases, water-like fluids to slurry, monomers and some polymers. Confirm the media and selected wetted-path materials with Zaxis.
What applications use the dual system?
The eVmP2 dispenses active pharmaceutical ingredients, diagnostic-kit reagent, battery electrolyte and medical-device coating, lubrication or adhesives. Pump heads and wetted-path materials must suit the application.
What accuracy is specified?
The eVmP2 delivers +/- 1% full-scale accuracy with 0.5% CV. It operates from -20ºC to 70ºC, non-condensing.
