Automation Leak Tester

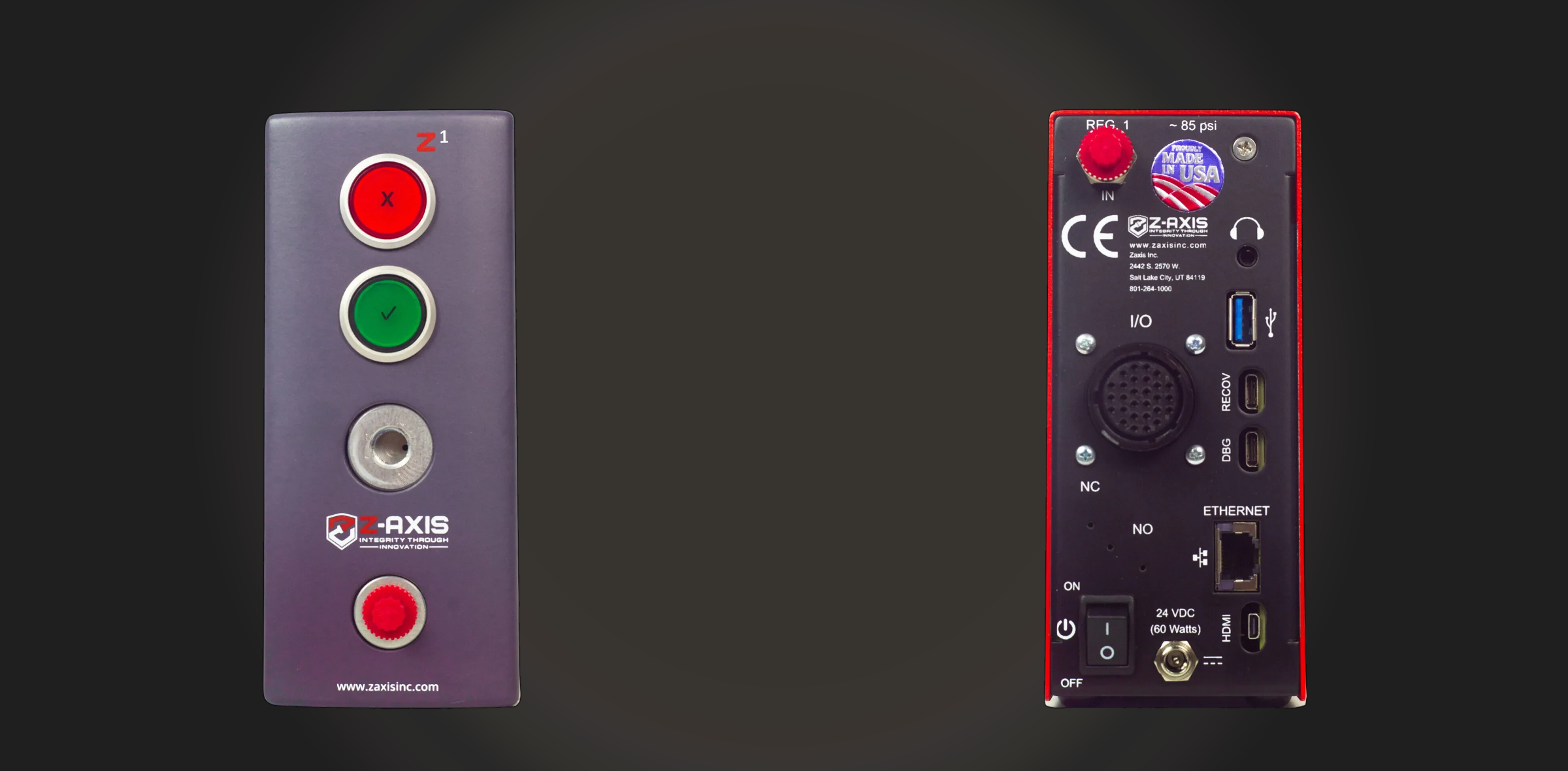

Z1 Air Leak Tester for Machine Integration
Single-Channel Testing for Machine Integration

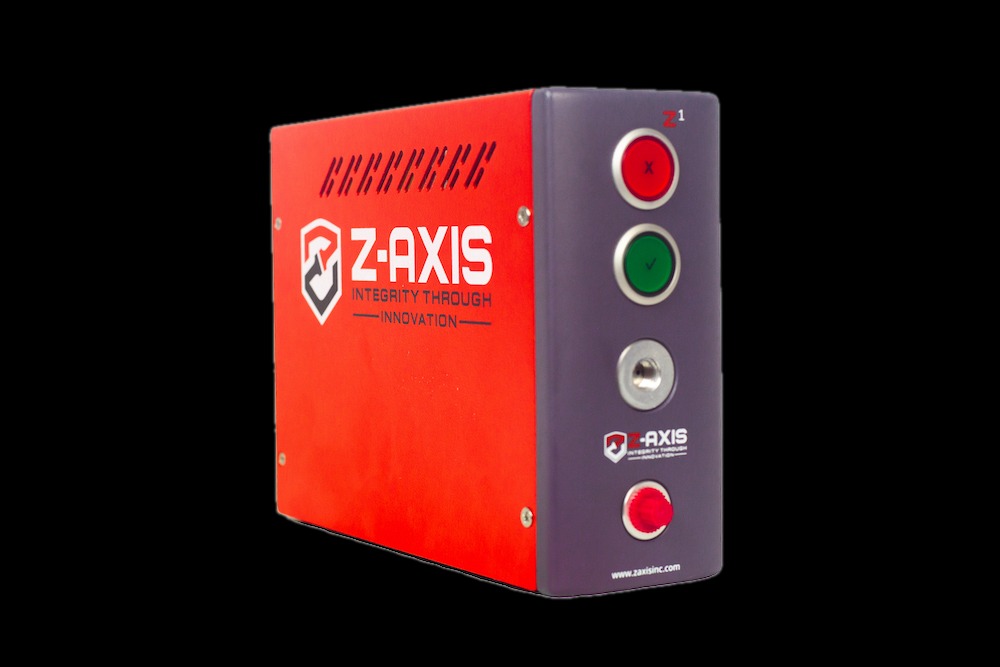

The Zaxis Z1 is a compact, single-channel air leak tester designed for machine integration. Its mounting orientation and small footprint let automation builders place dependable leak testing inside production equipment, where a benchtop interface is not the priority and space inside the cell is limited.
Available for combined pressure/vacuum decay or flow applications on one channel, the Z1 is built around the smallest internal volume available on the market. That low internal volume, a 32-bit ADC and fast scan rates support faster, more sensitive tests for parts in automated quality-assurance workflows.

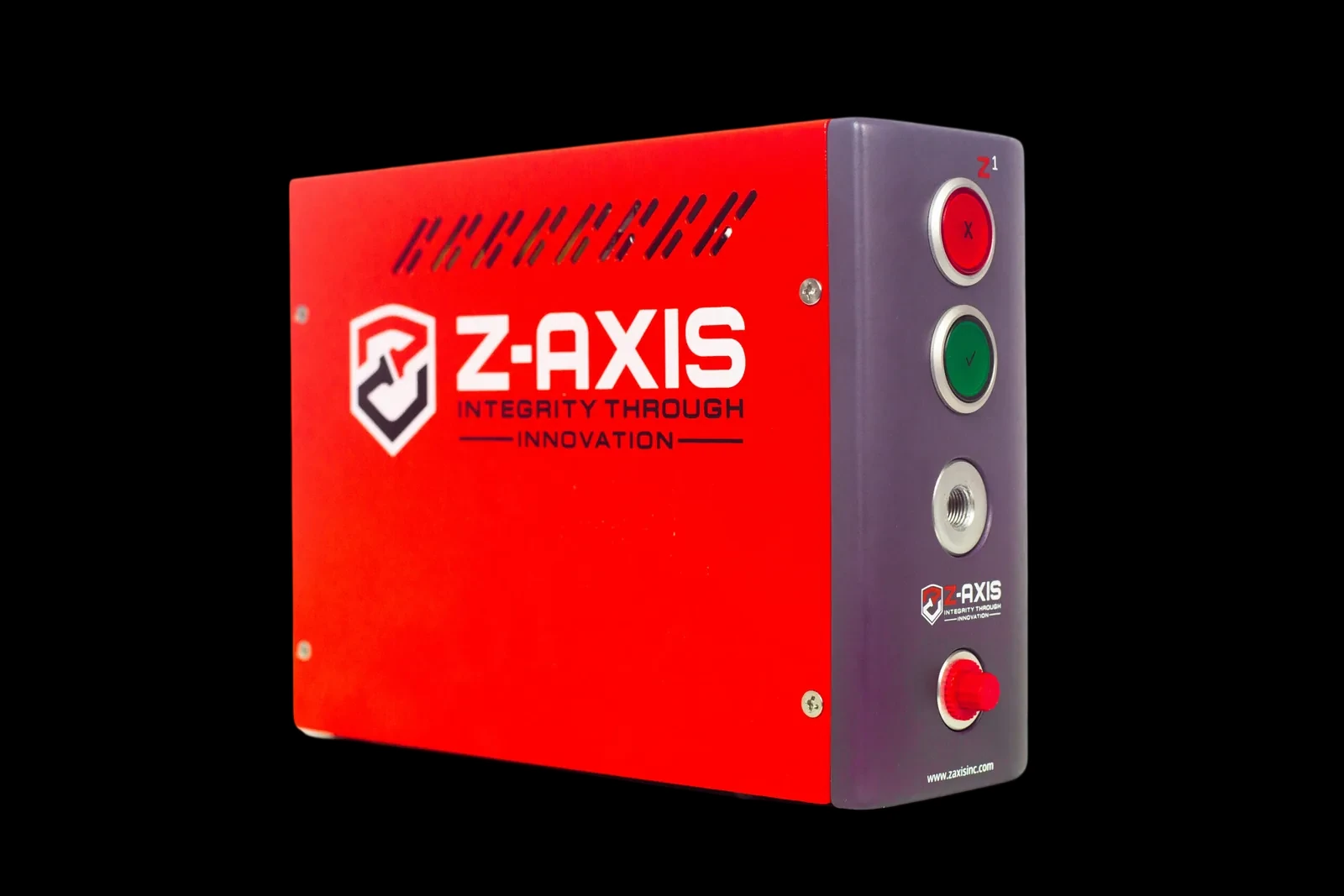

The Z1 measures 2.6” wide, 6.2” high and 8” deep, with 0.00001 PSI test-result resolution. An optional detachable touchscreen interface (TSi), HDMI output, OPC UA, USB, Ethernet/IP, TCP/IP and 24VDC I/O give the tester practical paths for setup, monitoring and connection to an automation cell.
For multi-channel applications, Z1 testers can be cascaded for truly synchronous operation. Zaxis has manufactured USA-made air leak testing equipment for over 25 years, with CE, ISO 9001, REACH and RoHS compliant solutions supporting automation production in medical, automotive, electronics and industrial manufacturing.
Request for QuoteLeak Rate Calculator
How is Leak Rate Calculated →Why Choose the Z1 Leak Tester for Your Production Line?
The Z1 is for production teams that need the measurement capability of a Zaxis air leak tester within an automated machine, not a stand-alone operator station. Its compact footprint, single test channel and optional detachable teach pendant keep the test hardware close to the fixture while controls and results stay available to the cell.
Choose the Z1 when the cell is built around one part or one test circuit at a time and the tester should disappear into the machine. If the application needs several independent channels in one enclosure and a built-in screen, compare the Z5; if it needs a larger modular platform for a larger automation cell, compare the Z8. Where several Z1 channels are needed, units can be cascaded for synchronous operation.
Test Channel
Machine-Mount Footprint
Fits inside automated equipment where space is limited.
Resolution
32-bit ADC and low internal volume.
Pressure Range
Plus 0–14.7 PSI vacuum; other ranges on request.
Stored Programs
Run multiple parameters through a single port.
Benefits of the Z1 Leak Tester
The Z1 carries the connections, resolution and program capacity needed for automated air leak testing while reserving the user interface for the places it is useful. Its single-channel architecture suits a dedicated fixture, and its communication options help the tester fit into an existing PLC and data workflow.
- ✓Single-screen test setup with HDMI output.
- ✓Detachable touchscreen interface.
- ✓Small footprint saves space inside automated machinery.
- ✓High sensitivity thanks to low internal volume, 32-bit ADC and fast scan rates.
- ✓Intuitive touchscreen interface makes test setup quick and easy, with no need for a lengthy training session.
- ✓Optional pneumatic valves for controlling tooling motions and fixtures.
- ✓Multiple communication options: OPC UA, Ethernet/IP, TCP/IP and USB.
- ✓Electronic or manual high-pressure regulators from 2 to 700 psi.
- ✓Up to 100 unique stored programs and optional onboard storage of test results.
- ✓Onboard statistics.
How a Z1 Leak Test Runs
A Z1 is configured for the method and limits required by the part, then operated as a single-channel test in the automation cell. The pressure-decay sequence below describes the core cycle; the Z1 is also available for combined pressure/vacuum decay or flow applications.
Fill
The fixture connects the part to the Z1 test port and applies the configured test pressure or vacuum.
Settle
The part is allowed to stabilise before the measurement interval so the programmed test evaluates the part rather than the transition into the test.
Test
The Z1 records the pressure result at the programmed resolution and applies the program’s pass/fail limits for the single test channel.
Vent
At cycle completion, the fixture can release the part and the automation cell can use the result through its configured communication or I/O connection.
Pressure decay leak rate depends on pressure change, test volume and time. Use the leak-rate calculator to estimate a test, then work with Zaxis to configure the appropriate method, pressure range and fixture for the part.
Available Zaxis Z1
Leak Test Types
The Z1 runs pressure decay, vacuum decay, occlusion, mass flow, burst and chamber testing. Select the method according to the part, fixture and production requirement.
Where the Z1 Is Used

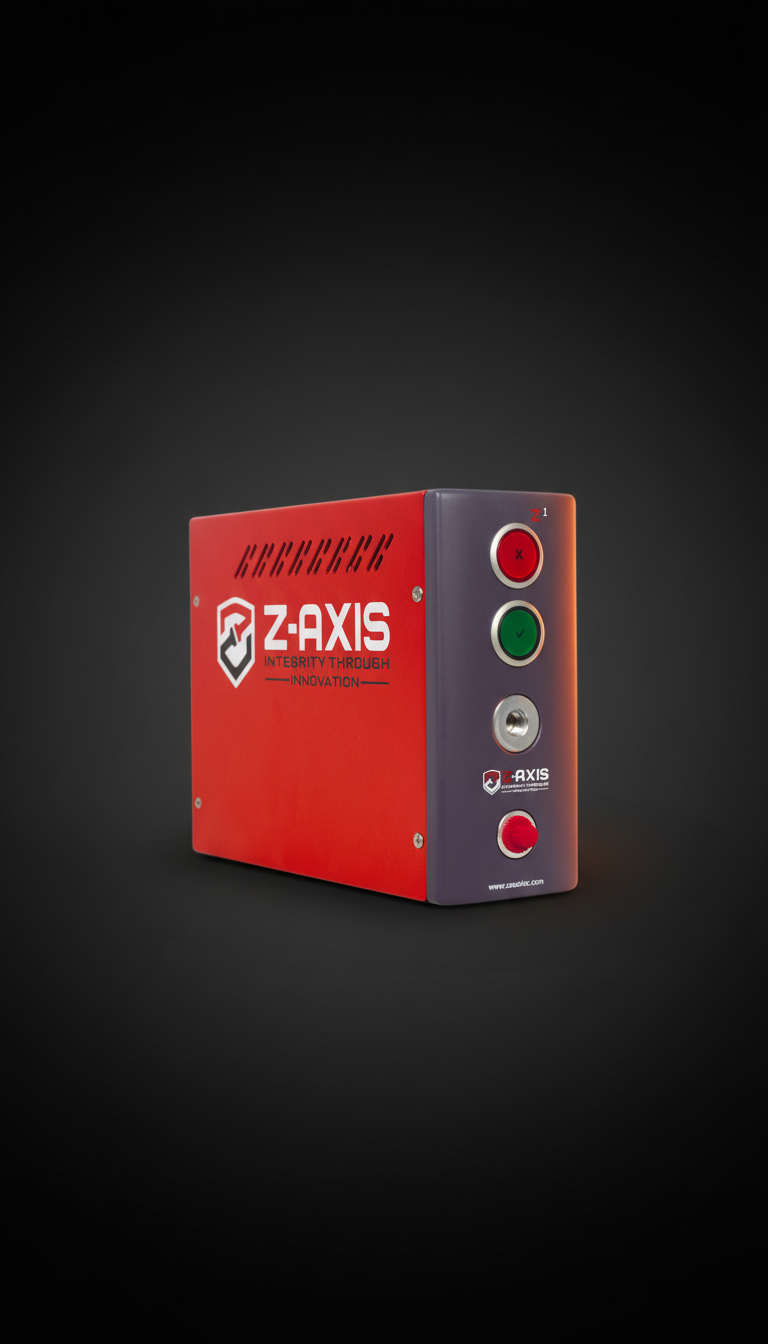

The Z1 is positioned for automated production where one part or one dedicated test circuit is handled at a time. Its small enclosure and machine-integration connections fit quality checks that need to happen in the cell rather than at a separate bench.
Automated pressure-decay stations
A single-channel Z1 can be mounted near a dedicated fixture for pressure or vacuum decay testing in an automation cell.
Read more →Medical-device production
Machine-integrated leak testing supports controlled production workflows for medical parts and fluid-handling components.
Read more →Automotive components
Automated leak-test cells can apply a repeatable single-channel test to components made for demanding automotive use.
Read more →Electronics enclosures
A compact tester can sit inside a machine that verifies the integrity of sealed electronics housings and related assemblies.
Read more →Industrial assemblies
The Z1’s footprint and PLC-friendly connections suit a dedicated leak-test operation built into a larger assembly machine.
Read more →Cascaded multi-station cells
For multi-channel applications, Z1 testers can be cascaded for truly synchronous operation across automation stations.
Read more →Technical Specifications
Specifications below are for the standard Z1 platform; pressure range, regulator and interface options are selected per order. Configure the pressure range, regulator, interface and accessories for the part and automation cell; contact Zaxis for complete configuration and application guidance.
- Dimensions
- 2.6” wide, 6.2” high, 8” deep
- Resolution
- 0.00001 PSI test result resolution
- Test Port Fitting
- 1/4″ or 1/8″ FNPT female bulkhead
- Pressure Range
- 2, 10, 15, 30, 60, 100, 150, 300, 400, 500 and 700 PSIG of Positive Pressure, 0-14.7 PSI of Vacuum (other ranges available upon request)
- Display
- Optional Detachable Touchscreen Interface (TSi)
- Performance
- 32-bit ADC
- Regulator
- External option
- Leak Standard
- Optional calibrated leak tool to prove your test setup
- Stored Programs
- 100 – allows you to run multiple parameters through a single port
- Memory
- Optional onboard storage of test results with statistics
- Connectivity/Power
- USB, Ethernet/IP, TCP/IP, 24VDC I/O
Compare Leak
Testing Performance
Zaxis air leak testers share a focus on production quality assurance, but the enclosure and channel architecture determine the best fit. Choose the Z1 for a compact, headless-style automation integration with one test channel and an optional detachable TSi. Choose the Z5 when the application needs up to four channels in one compact tester with a 5” touchscreen; choose the Z8 for a larger modular platform in a larger automation cell.
| Test Types |  Zaxis Z8 |  Zaxis Z5 |  Zaxis Z1 |  Zaxis Z5L |  Zaxis Z8N |  VM3 Volumetric |
|---|---|---|---|---|---|---|
| Pressure Decay | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Vacuum Decay | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Occlusion | ✓ | ✓ | ✓ | ✓ | ✓ | × |
| Thermal mass flow | ✓ | ✓ | ✓ | × | ✓ | × |
| Laminar mass flow | ✓ | × | × | × | × | × |
| Burst | ✓ | ✓ | ✓ | × | ✓ | × |
| Pressure Cracking | ✓ | ✓ | × | × | ✓ | × |
| Chamber | ✓ | ✓ | ✓ | × | ✓ | × |
| Back Pressure Flow | ✓ | ✓ | × | × | ✓ | × |
| High pressure (>200 psi) | ✓ | ✓ | ✓ | × | ✓ | × |
| Volumetric Decay | × | × | × | × | × | ✓ |
Z1 Leak Tester FAQ
What is the Z1 designed for?
The Z1 is designed for automated air leak testing and machine integration. Its compact size and mounting orientation are intended for installation in production equipment where space is limited.
How many channels does the Z1 have?
The Z1 is available for combined pressure/vacuum decay or flow applications on a single channel. For multi-channel applications, Z1 testers can be cascaded for truly synchronous operation.
Does the Z1 have a built-in screen?
The Z1 supports an optional detachable touchscreen interface (TSi) and single-screen test setup with HDMI output.
What resolution does the Z1 provide?
The Z1 resolves test results to 0.00001 PSI and uses a 32-bit ADC.
Which leak test methods does the Z1 run?
The Z1 runs pressure decay, vacuum decay, occlusion, mass flow, burst and chamber testing.

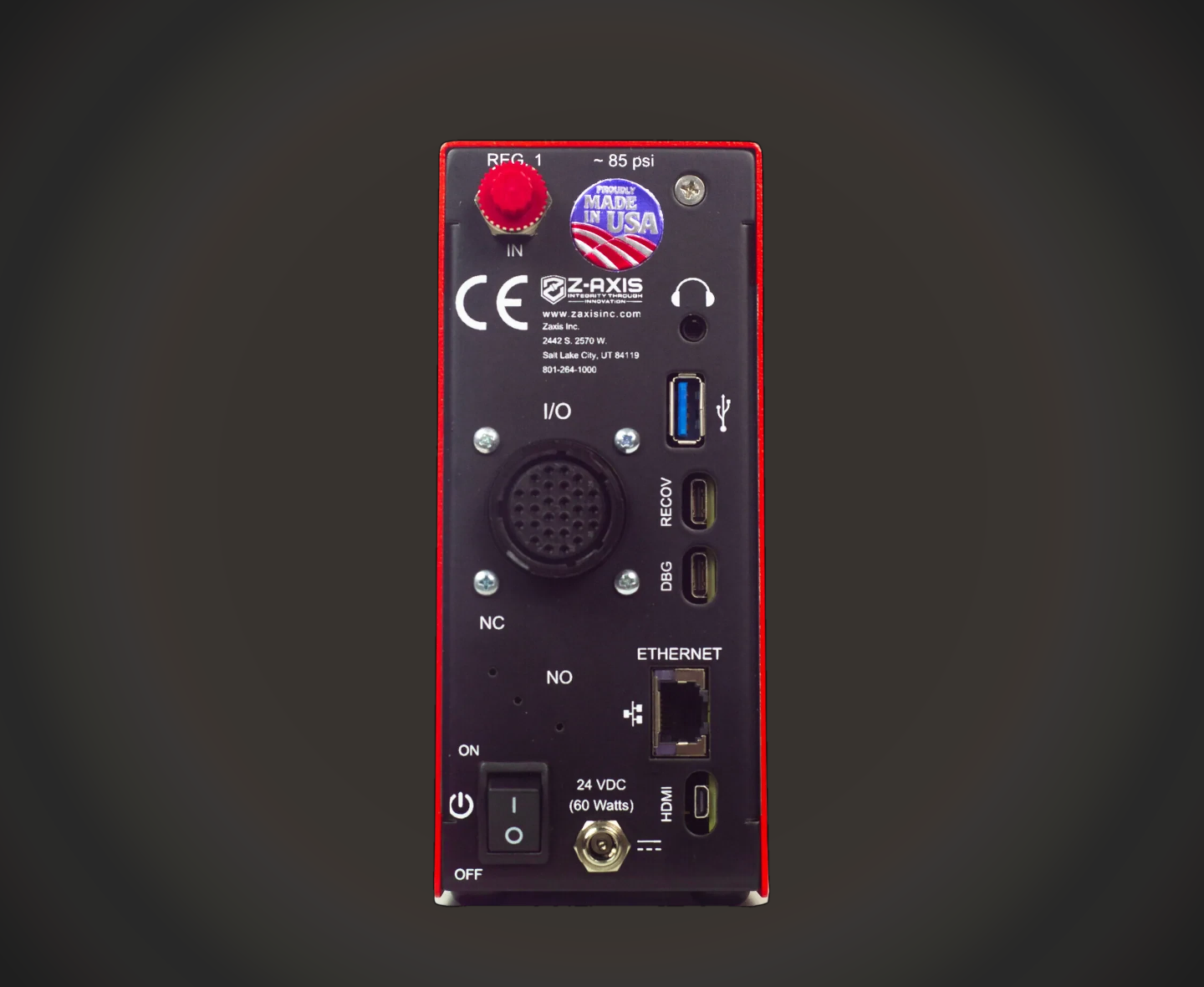

How does the Z1 connect to an automation cell?
The Z1 supports OPC UA, USB, Ethernet/IP, TCP/IP and 24VDC I/O, with optional pneumatic valves for controlling tooling motions and fixtures.
How many programs can be stored?
The Z1 stores 100 programs, allowing multiple parameters to run through a single port. Optional onboard test-result storage with statistics is also available.
What pressure ranges are available?
Positive-pressure ranges are 2, 10, 15, 30, 60, 100, 150, 300, 400, 500 and 700 PSIG, plus 0–14.7 PSI vacuum; other ranges are available upon request.
