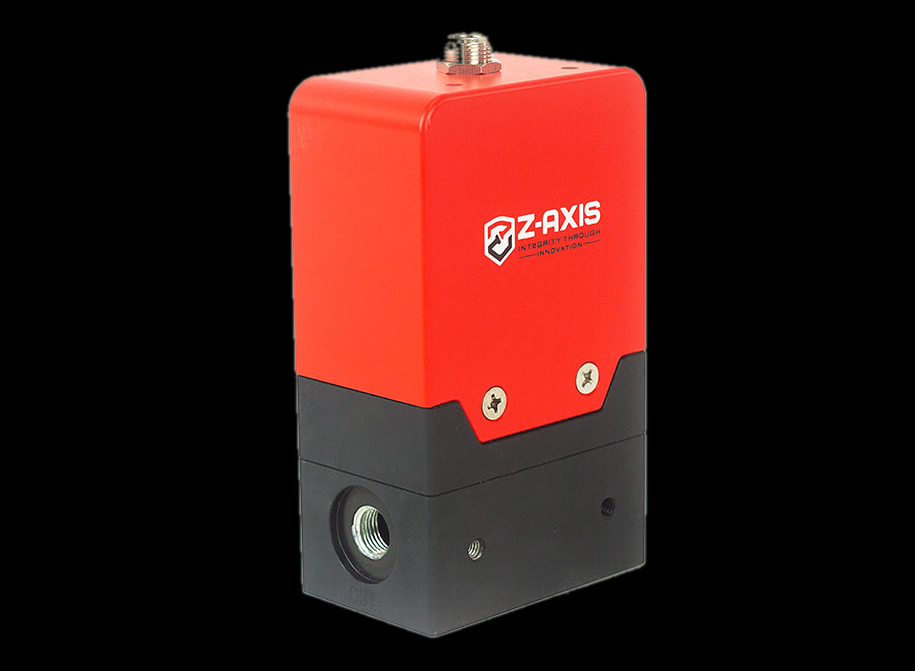

Electronic Regulator – Z-Reg
The Z-Reg converts a voltage or current input into a proportional pressure output.
The proportional electro-pneumatic regulator uses two values together to reach and maintain pressure. A built-in 30 cc reservoir provides consistent pressure over time and no minimum operating volume.
It can run as a stand-alone product for quick pressure-set changes or be incorporated into larger machines.
Request for QuoteCommand and control
The Z-Regulator can be digitally controlled with a 0-5V, 0-10V or 4 to 20 mA signal. It can be configured with a 2″ display.
Two values work in unison to reach and maintain pressure. A built-in 30 cc reservoir means there is no minimum volume to operate the Z-Regulator and provides more consistent pressure over time.
Pressure regulation for standalone or integrated use
The Zaxis electronic regulator has an operating pressure range from 200 PSI to 1000 PSI. It converts a voltage or current input into a precise proportional pressure output.
The Z-Regulator can be used as a stand-alone product when pressure sets must change quickly, or incorporated into larger machines. Its module shape and size allow it to fit into larger machines.
Z-Reg performance and construction
Accuracy and repeatability
±0.2% F.S. accuracy; ±0.2% F.S. repeatability
Flow and port
20 LPM maximum flow with 1/8″ NPT port size
Construction
Aluminum 6061 body with no minimum volume required
Specifications and options
| Specification | Value |
|---|---|
| Operating temperature | 32-158ºF (0-70ºC) |
| Filtration | 40 Micron |
| Dimensions | 126 x 64 x 68 mm (5.00 x 2.50 x 2.75 in) |
| Power requirement | 24 ± 4 VDC @ 5W |
| Command input | Configurable 0…10 VDC; 4…20mA |
| Monitor output | 0…5 VDC |
| CAD files | Download Electronic Z-Regulator STEP file. |
Related accessories
Electronic Regulator – Z-Reg FAQ
What electrical commands can control the Z-Reg?
The Z-Reg can be digitally controlled with 0-5V, 0-10V, or 4 to 20 mA signals; its command input is configurable for 0…10 VDC and 4…20mA.
What are the Z-Regulator dimensions?
The electronic regulator measures 126 x 64 x 68 mm, or 5.00 x 2.50 x 2.75 in.
Does the Z-Reg need a minimum pneumatic volume?
No. Its built-in 30 cc reservoir means no minimum volume is required and helps provide consistent pressure over time.
Can the Z-Reg be installed in a larger machine?
Yes. The Z-Regulator can operate as a stand-alone product or be incorporated into a larger machine.
