Capacitive Touchscreen
Integrated interface with adjustable viewing position.
Benchtop Metering
eVmP1 Benchtop Metering Pump System
Integrated Control for Compatible eVmP Pump Heads

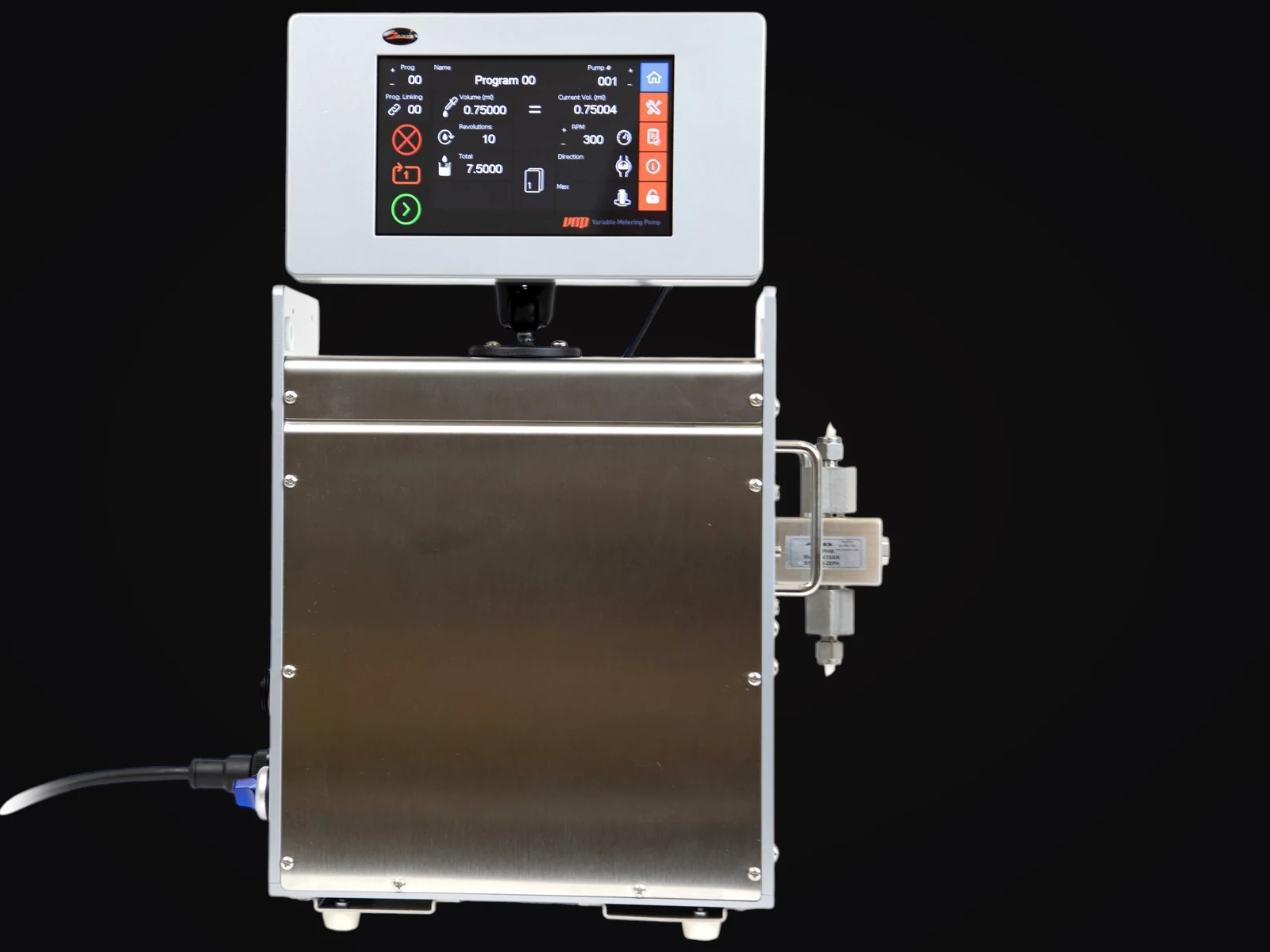

The eVmP1 is a benchtop enclosure for a compatible Zaxis eVmP valveless metering pump configuration. It brings metered dispensing control and operation together in a splashproof stainless-steel enclosure, with an integrated 7-inch capacitive touchscreen for programming and operation.
The enclosure is compatible with M- or V-series stepper or servo drives and M- or V-series pump heads. Compatible configurations cover pump-head displacement up to 1.28 mL per revolution and continuous flow up to 900 mL/min in the stated eVmP1 system specifications; the installed head determines the applicable range.
The eVmP1 supports continuous metering, single or multiple dispense, flow direction and pull-back operation. Its touchscreen can control RPM, forward, reverse, quick-prime, suck-back and additional functions, while stroke rate, displacement and fine adjustment are independently controlled.
For automation and production work, the eVmP1 supports RS485, 24 VDC digital I/O or optional EtherNet/IP communication. The enclosure has an internal power supply for direct connection to a 120V outlet, and Zaxis has supplied electronic metering pumps for more than 25 years from the USA.
Request for QuoteDispense Rate Calculator
Why Choose the eVmP1 Benchtop Enclosure?

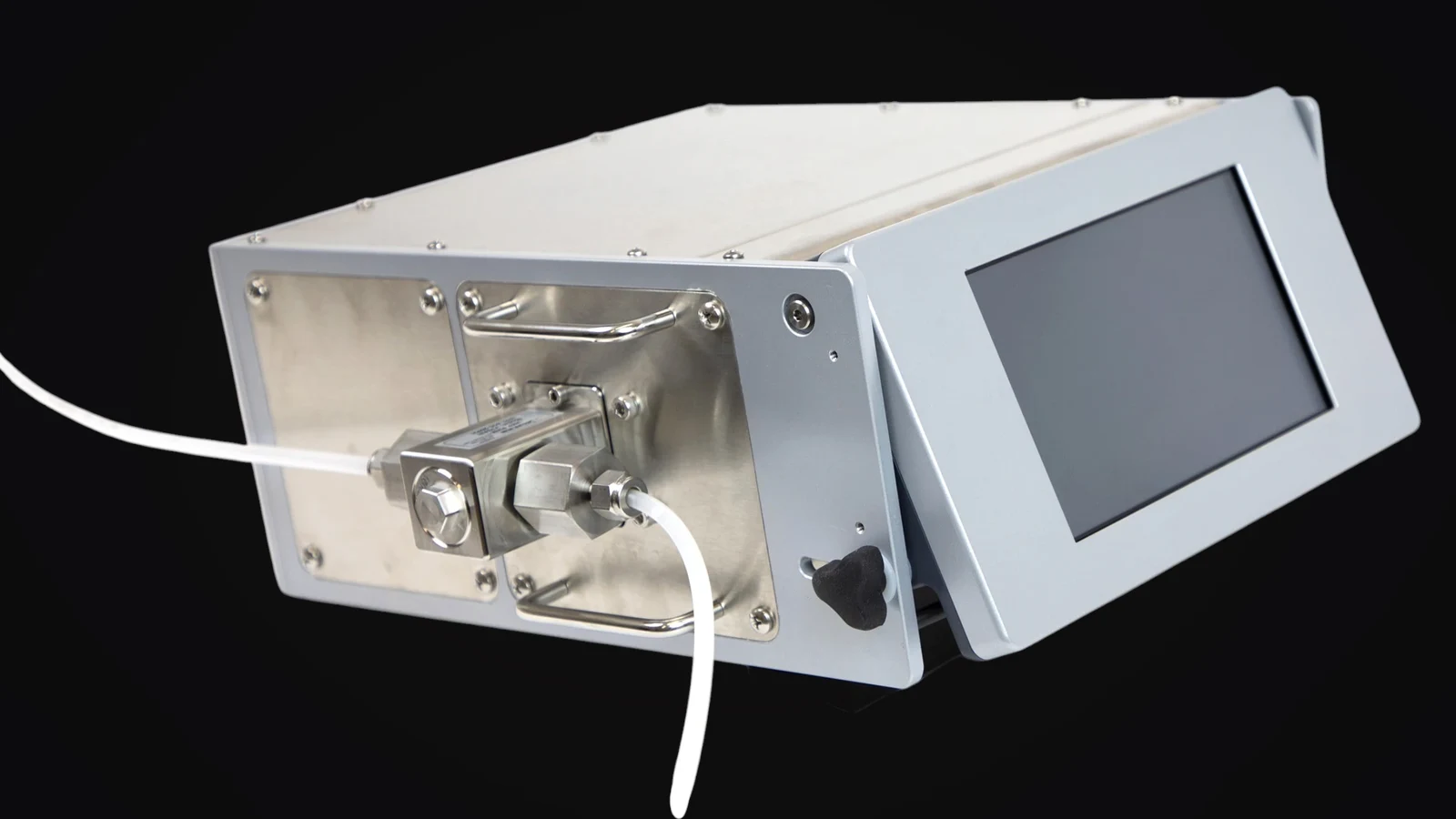

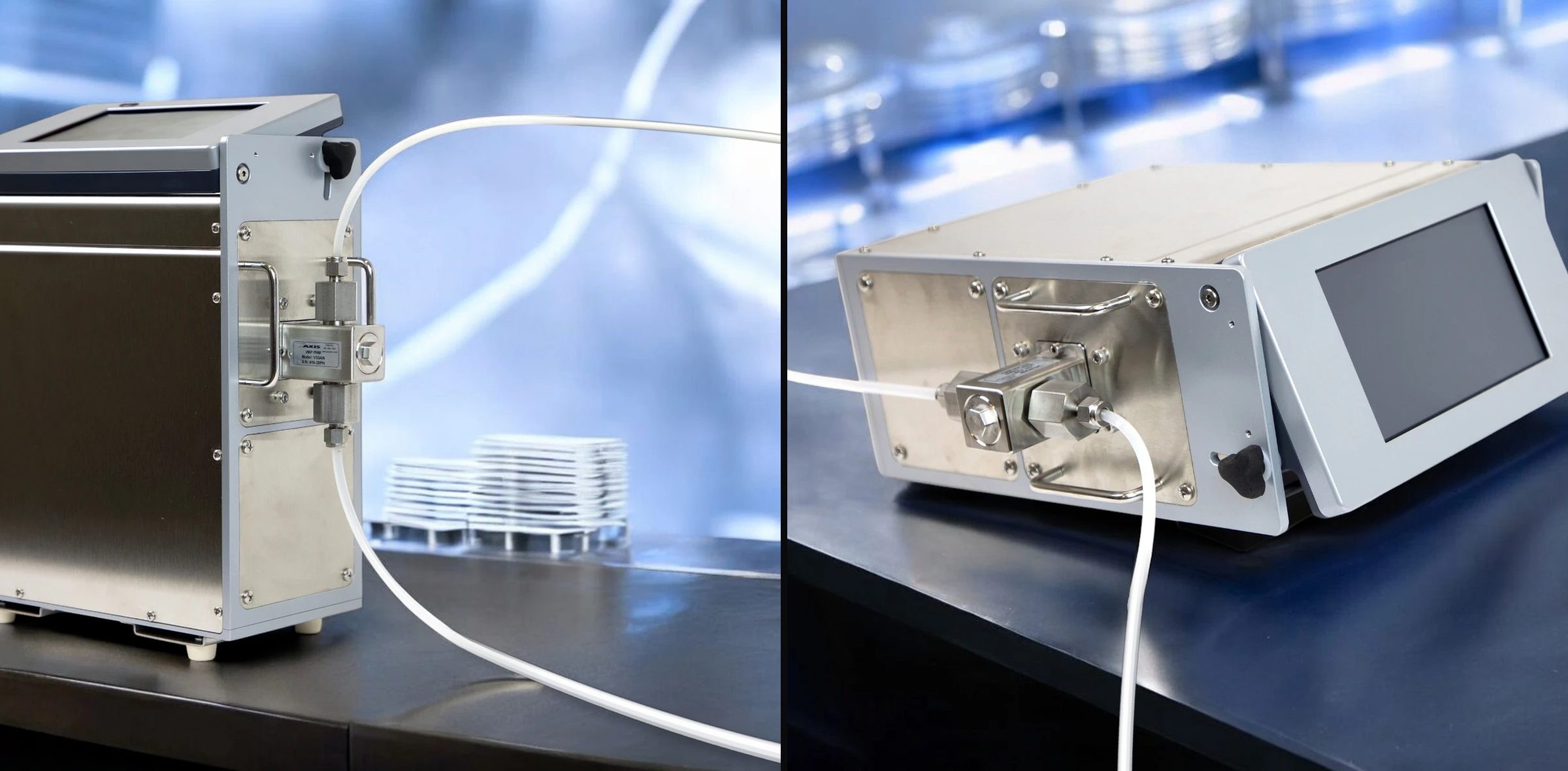

The eVmP1 combines a compatible eVmP pump head, drive and operator interface in a benchtop package. The mounted touchscreen rotates nine degrees for viewing and can be mounted externally. Its stainless-steel enclosure is splashproof, and the pump head can be placed on the right or left side.
The compact enclosure is 5.5 inches wide, 15.1 inches high and 13.5 inches deep. Changing a pump head requires removing two screws, helping teams configure the system around the selected M- or V-series pump head. The eVmP1 has a stainless-steel splashproof enclosure, supports right- or left-side pump-head placement and uses an internally mounted power supply. This concentrates the operating interface, power and compatible pump hardware in a benchtop package for controlled dispensing work.
Capacitive Touchscreen
Stored Programs
Link, loop, cycle and delay programs on each pump drive.
Compatible System Range
System specification; installed compatible pump head determines the result.
Continuous Flow
System specification for compatible configurations.
Pressure Range
Customization is available for application requirements.
eVmP1 Control and Configuration Benefits
The eVmP1 is for teams that need a benchtop controller and compatible pump in one unit rather than a loose collection of drive, interface and power components. Its control modes, program storage and connection choices let the selected pump configuration serve manual, remote-start and automation workflows.
- ✓Valveless eVmP pumping design with compatible pump head options.
- ✓RS485, 24 VDC digital I/O or optional EtherNet/IP communication.
- ✓Store up to 50 programs on each pump drive.
- ✓Foot-switch or remote-start operation.
- ✓Patented electronic adjustment from microliters to milliliters.
- ✓Independently controlled stroke rate, displacement and fine adjustment.
- ✓Touchscreen interface with adjustable mount and control of prime, reverse and suck-back.
How the eVmP Enclosure Dispenses
The enclosure provides the control interface for a compatible eVmP pump head. The valveless cycle uses a piston to move fluid; the compatible head and selected operating program determine the dispensing task.
Aspirate
The piston draws fluid in as the cycle begins.
Rotate and Seal
The piston’s rotation seals the inlet as described for the eVmP valveless pumping principle.
Dispense
The piston dispenses the selected fluid volume through the compatible pump head.
Repeat
The programmed system repeats the cycle for continuous metering or single and multiple dispense operations.
For an overview of the eVmP interface and operation, see the eVmP Smart Pump Interface Overview video in the resources below.
Applications for eVmP Metering
The eVmP platform is used where a configured pump system is needed for controlled fluid dispensing. The enclosure should be paired with compatible M, V or VS10-series equipment and application-appropriate wetted-path materials.
Diagnostic reagent dispensing
Controlled dispensing for diagnostic reagent applications.
Read more →Buffer dispensing
Automated dispensing considerations for buffers and diagnostic workflows.
Read more →Pharmaceutical filling
Fluid metering options for pharmaceutical manufacturing.
Read more →Chemical metering
Configured pump systems for chemical metering applications.
Read more →Analytical instruments and OEM equipment
eVmP configurations for manufacturing and OEM instrumentation.
Read more →Electronics fluid metering
Fluid dispensing applications for electronics manufacturing.
Read more →Technical Specifications
These eVmP1 system specifications apply to the enclosure and compatible pump configuration. Select the pump head and wetted path for the required process and confirm application details with Zaxis.
- Dimensions
- 5.5″ wide, 15.1″ high, 13.5″ deep
- Accuracy and Precision
- +/- 1% of full scale, 0.5 CV with 0.01 µL resolution
- System Power
- 60 Watts, 2 Amps, 24 VDC 110-240VAC
- Pressure Range
- 0–100 psi (customization available)
- Dispense and Flow Range
- 0–1.28 mL/rev, up to 900 mL/min continuous
- Wetted Path Options
- Ceramic (medical-grade alumina oxide), 316SS, 303/304SS, PVDF, PEEK; customization available
- Operational Temperatures
- -20ºC–70ºC, non-condensing
- Operational Types
- Continuous metering, single/multiple dispense, flow direction and pull back
- Stored Programs
- Link, loop, cycle and delay; up to 50 programs on each pump drive
- Communication
- RS485, 24 VDC digital I/O or optional EtherNet/IP™
Compare the
eVmP Range
Choose the eVmP1 when a benchtop controller and one compatible eVmP pump are appropriate. Choose the eVmP2 when two eVmP dispensers are needed in one enclosure; compatible M, V and VS-series pump equipment sets the final flow and pressure capability.
| Specification |  M-Series |  V-Series |  VS10-Series |  eVmP1 Benchtop |  eVmP2 Dual |
|---|---|---|---|---|---|
| Format | Pump head + OEM drive | Pump head + OEM drive | Pump head + servo drive | Benchtop enclosure, 7″ touchscreen | Dual enclosure, two pumps |
| Volume per revolution / stroke | 2.5–100 µL | 25 µL–1.28 mL | Nearly 10 mL per stroke | Up to 1.28 mL (installed head) | Up to 1.28 mL (installed heads) |
| Maximum flow | Under 100 mL/min | Up to 1,920 mL/min (VS drive) | Up to 6 L/min (10 mL/rev @ 600 RPM) | Up to 900 mL/min | Up to 1,920 mL/min (VS-Series) |
| Maximum pressure | 100 PSIG | 100 PSIG (V) / 200 PSIG (VS) | 100 PSIG | 0–100 psi | 100 PSIG (M/V) / 200 PSIG (VS) |
| Accuracy / repeatability | ±1% FS / 0.5% CV | ±1% FS / 0.5% CV | ±1% FS / 0.5% CV | ±1% FS / 0.5% CV | ±1% FS / 0.5% CV |
| Wetted path | Ceramic, PVDF (Kynar®), PTFE, Rulon® AR | Ceramic, 316SS | Ceramic, 316SS, PTFE; sanitary fittings | Ceramic, 316SS, 303/304SS, PVDF, PEEK | Ceramic, 316SS, 303/304SS, PVDF, PEEK |
| Drive | Stepper (VMP-OEM-M) | Stepper (VMP-OEM-V) or servo (VMP-OEM-VS) | Servo (VMP-OEM-VS10) | M/V stepper or servo drive | Two stepper drives |
| Interface | RS485, PLC I/O, optional EtherNet/IP | RS485, PLC I/O, optional EtherNet/IP | RS485, PLC I/O, optional EtherNet/IP | RS485, 24 VDC I/O, optional EtherNet/IP | Ethernet TCP/IP, RS485 |
| Stored programs | Up to 50 | Up to 50 | Up to 50 | Up to 50 per drive | Up to 50 |
Industries We Serve
Zaxis eVmP systems support production work that calls for controlled fluid dispensing and metering. Review the application context with Zaxis to select the enclosure, compatible pump head and connection method for the process.
ElectronicsAccurate fluid metering for electronic manufacturing processes.
EnvironmentalRepeatable dosing for environmental monitoring and treatment.
MedicalPrecision dispensing for medical manufacturing applications.OEMConfigurable metering pumps for OEM equipment.Pharmaceutical ManufacturingReliable fluid control for pharmaceutical production.Positive Displacement PumpsPrecision metering solutions for fluid-control applications.eVmP1 Benchtop Enclosure FAQ
What is the eVmP1?
The eVmP1 is a benchtop enclosure that combines eVmP pump hardware with metered-dispensing controls and a 7-inch touchscreen.
Which pump heads can the eVmP1 use?
The eVmP1 works with M- or V-series stepper or servo drives and M- or V-series pump heads. Choose the head and wetted path for the process.
Does the eVmP1 include a touchscreen?
Yes. The integrated 7-inch capacitive touchscreen rotates nine degrees and can be mounted externally.
How does it connect to automation?
The eVmP1 supports RS485, 24 VDC digital I/O and optional EtherNet/IP. A foot switch or remote start can initiate operation.
How many programs can it store?
Each pump drive stores up to 50 programs with link, loop, cycle and delay functions.
What operating modes are available?
The eVmP1 supports continuous metering, single or multiple dispense, flow direction and pull back. It controls RPM, forward, reverse, quick-prime and suck-back.
What are the enclosure dimensions?
The eVmP1 is 5.5 inches wide, 15.1 inches high and 13.5 inches deep. It operates from -20ºC to 70ºC, non-condensing.
Can the pump head be changed?
The enclosure supports right- or left-side pump-head placement. Changing a head requires removing two screws; confirm compatibility before selecting a different head.
