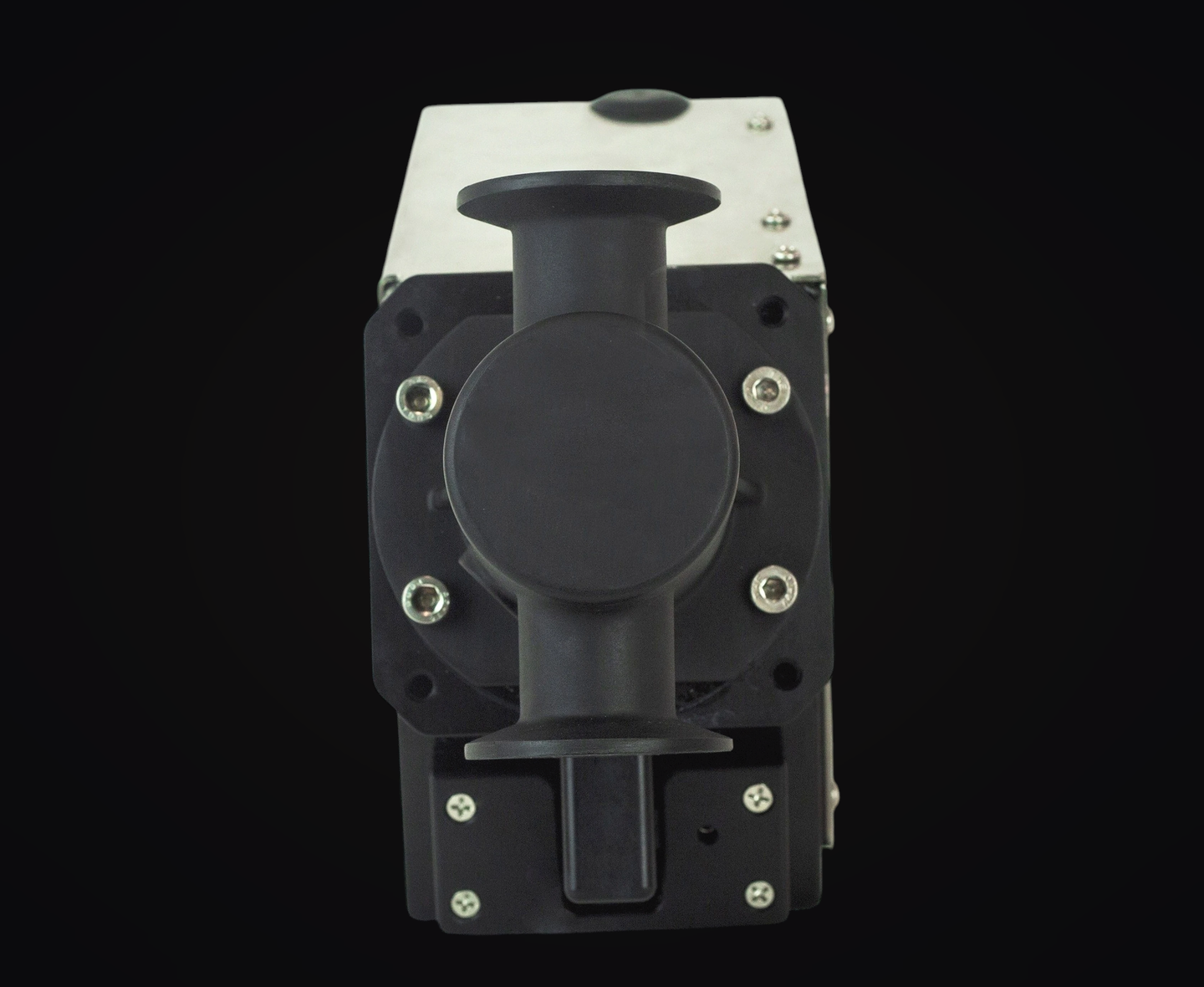

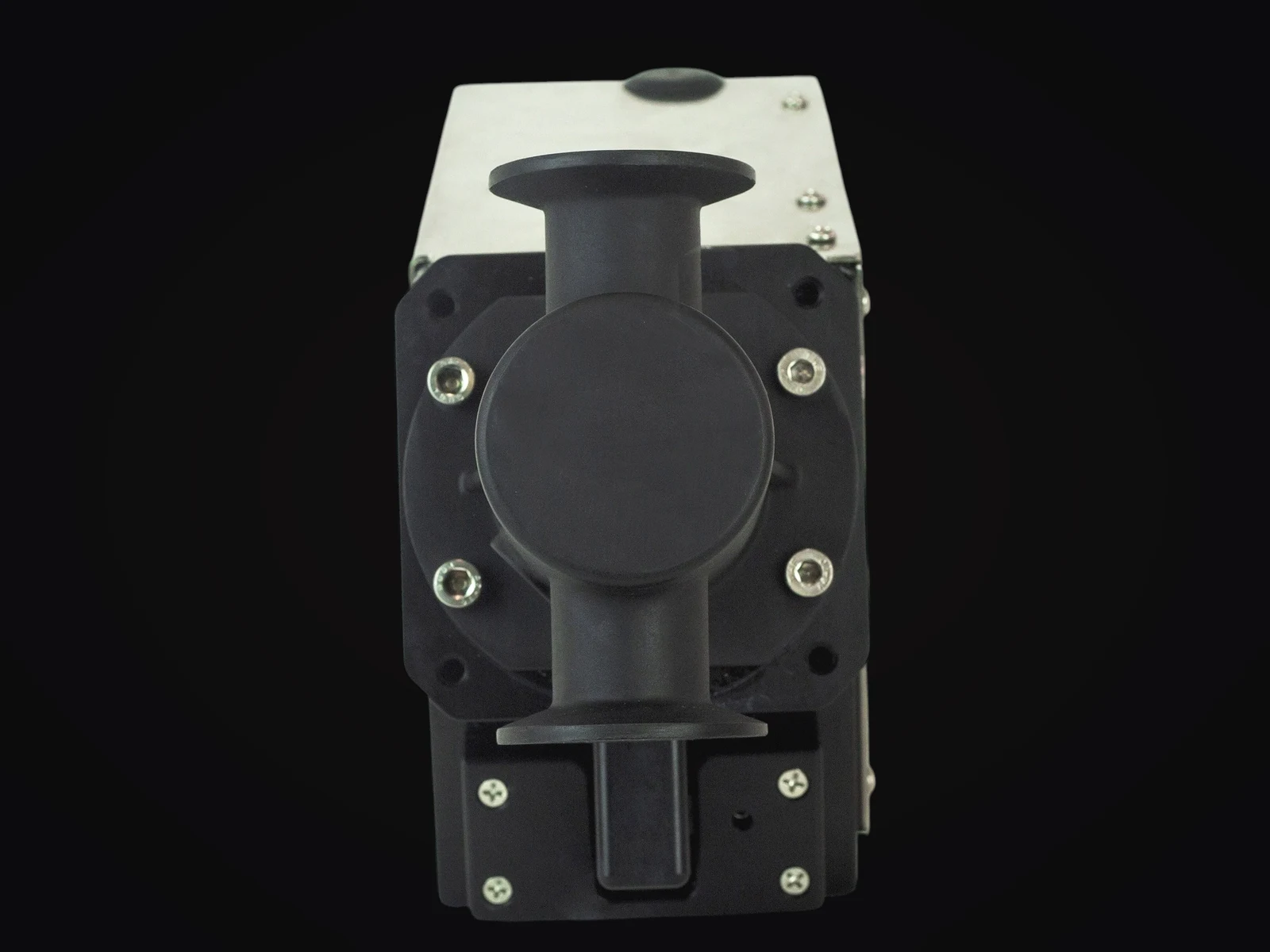

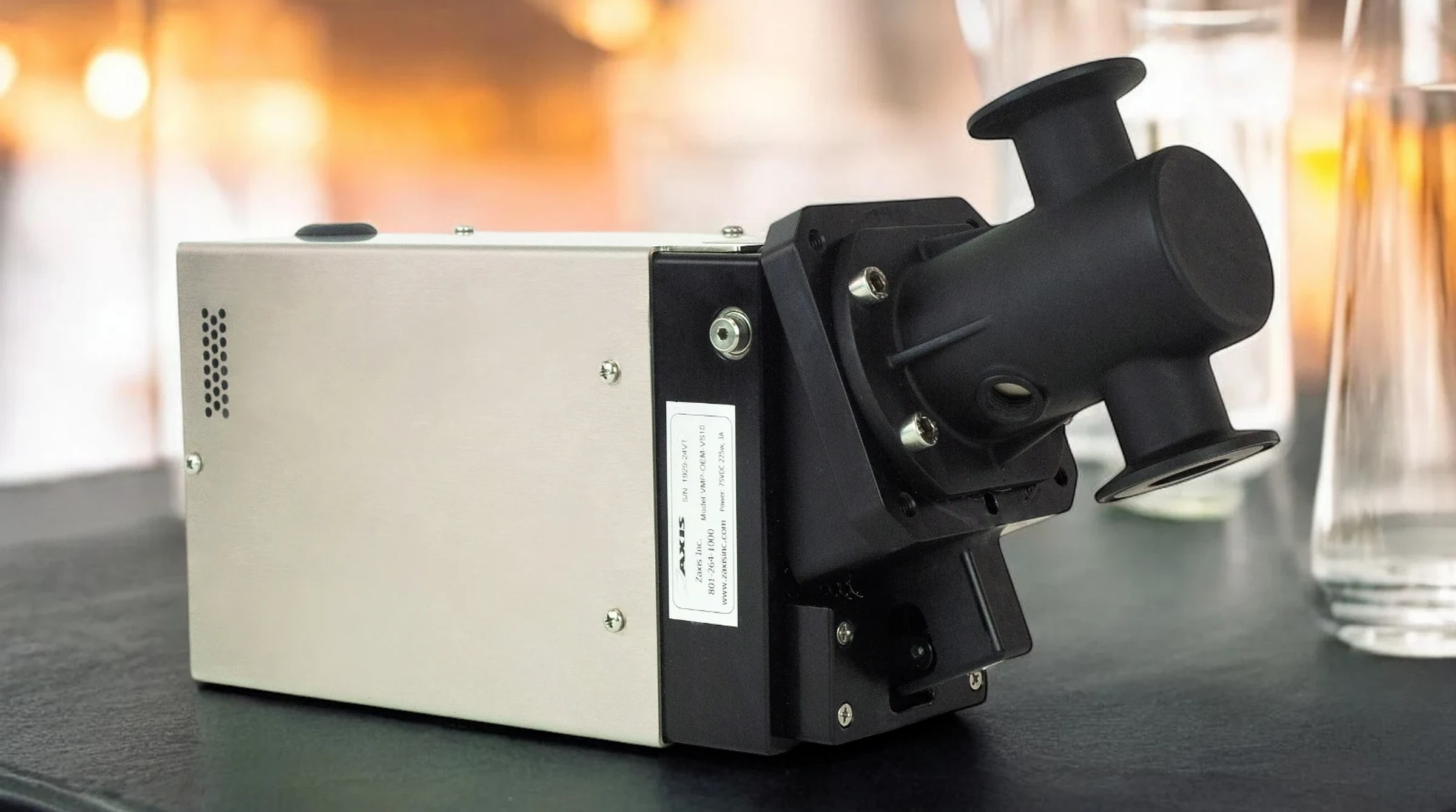

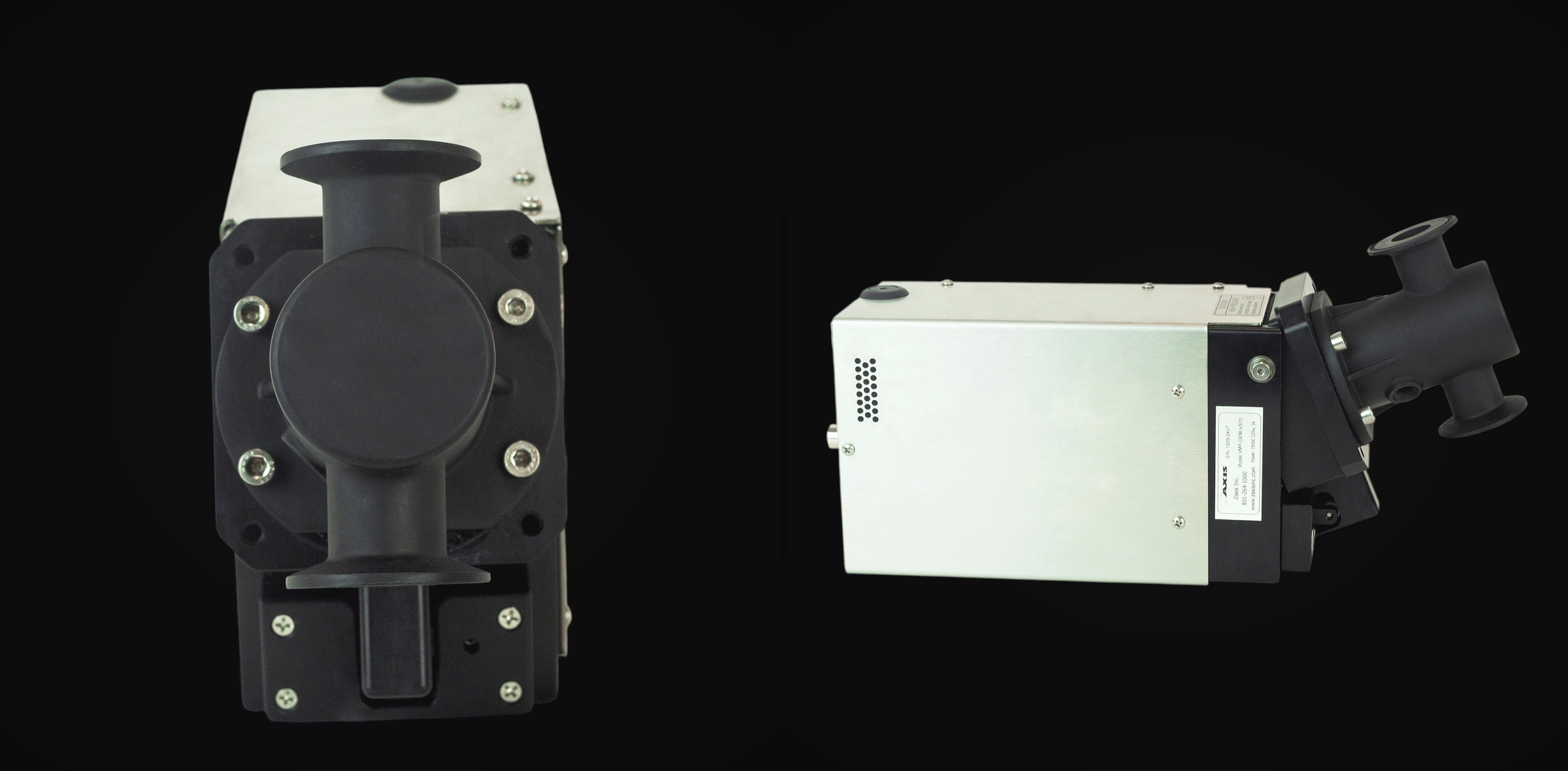

Milliliter Pumps – VS10 Series
(0.1mL/rev – 10mL/rev)
Milliliter Heads
The V6SAN-W Pump head offer one of the largest fill volumes per stroke and metering rate in the industry, providing larger flow rates with a valve-less piston design. It features 316SS and PTFE wetted parts, as well as sanitary features such as tri clamp/sanitary fittings designed to meet FDA and 3A standards. Wash glands are optional(-w) as well as numerous fitting configurations to meet your application needs.
Milliliter Drive

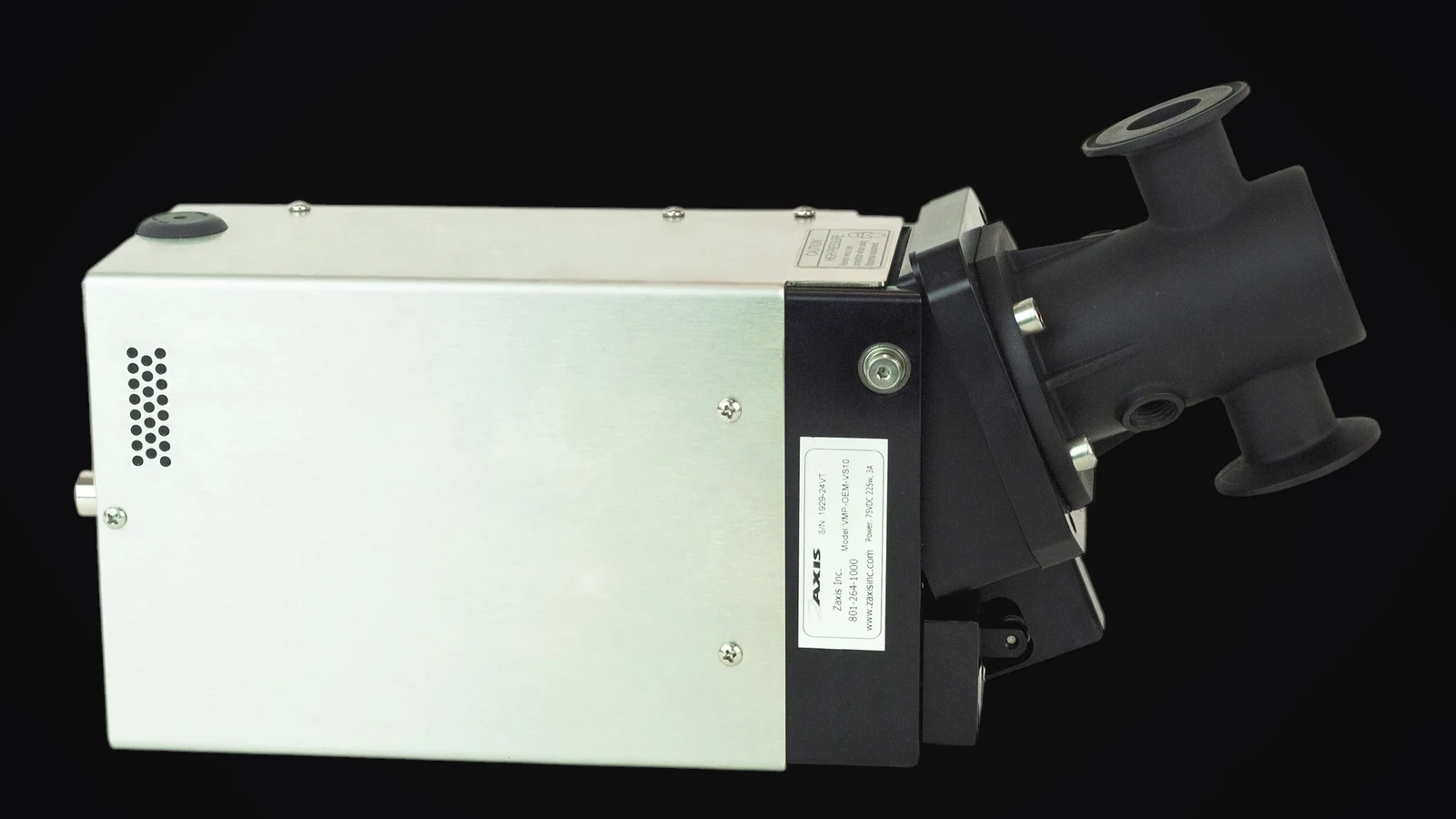

The VMP-OEM-VS10 is our specialty, servo–driven motor drive, designed to accept to V6SAN Pump Head. Using a powerful servo motors and extra-large flow capacity, the VMP-OEM-VS10 can accomplish an amazing 10L/min and nearly 10mL/stroke, at a maximum of 25 PSI. Each VS10 Drive is standard with RS485, PLC I/O, and Ethernet connections.
Milliliter Head Specifications
|
Compatible Drive
|
VMP-OEM-VS10
|
| Wetted Path |
Ceramic (medical grade alumina-oxide), 316SS, Customization available
|
| Operational Temps | -20˚C – 70˚C, non-condensing |
| Accuracy & Repeatability |
+/- 1% Full Scale Accuracy, 0.5% Full Scale CV (coefficient of variation)
|
Milliliter Drive Specifications
| Dimensions | 3.6″ wide, 4.9″ high, 9.3″ deep |
| Compatible Heads | V6SAN-W |
| Weight | 18.4lbs (with pump head) |
| System Power |
24VDC 4Amp (Optional 75VDC 5Amp)
|
| Pressure Range | 100PSIG Max |
| RPM |
600 (speed dependent on viscosity)
|
| Operational Types | Continuous Metering, Single/Multiple Dispense, Flow Dispense, Flow Direction & Suck Back |
| Stored Programs | Up to 50 |
| Interface |
RS485, 1/2 or Full Duplex, Optional EtherNet/IP
|
VS10-Series Preventive Maintenance Kit
Kit includes:
- 1 Lip Seal
- 1 Gland Washer
- 2 Port Seal Bushings
- 1 Gasket
